Makino Horizontal Machining Center
Horizontal Machining Centers
| X | 22.05" |
| Y | 22.05" |
| Z | 23.6" |
| Power | 25 hp |
| RPM | 14,000 RPM |
| # ATC | 90 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| Control | CNC (Professional 3 (Fanuc 16iM) Control) |
| Dimensions | 180" x 75" x 118" |
| Weight | 19,000 pounds |

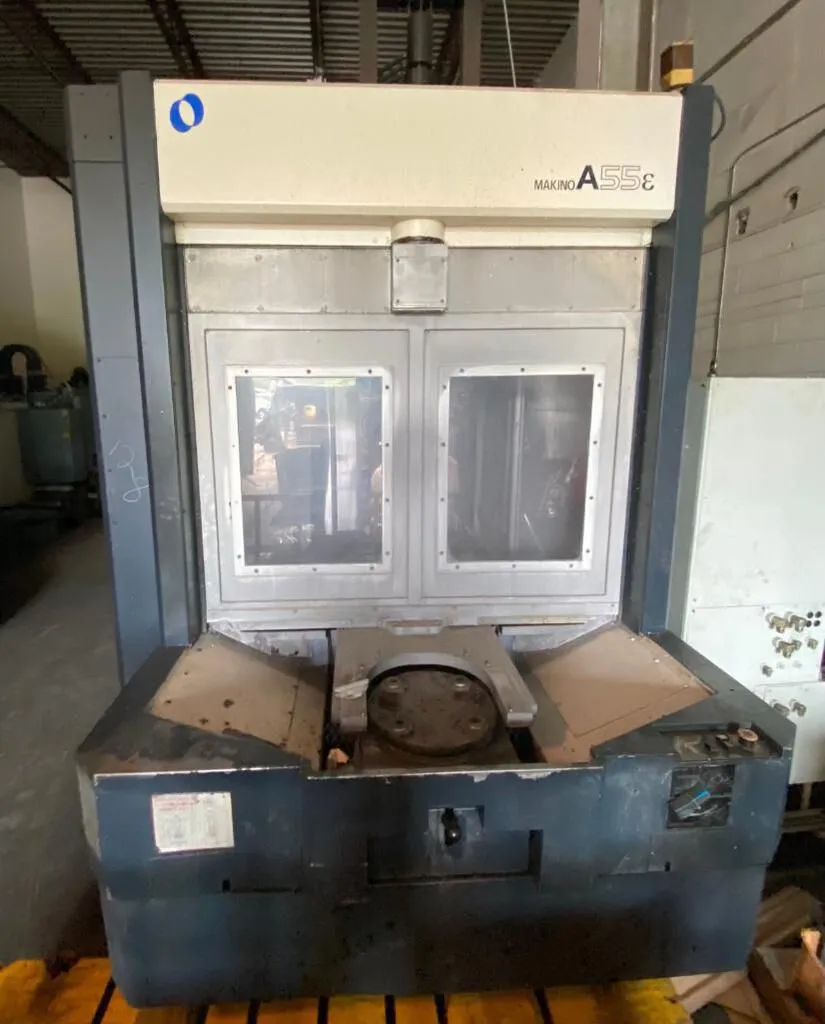

Makino Horizontal Machining Center
Model: Makino A55E
Year: 2001
X axis travel: 22"
Y axis travel: 22"
Z axis travel: 22"
Rapid rate x axis: 3,307 IPM
Rapid rate y axis: 3,307 IPM
Rapid rate z axis: 3,307 IPM
Pallet size: 15.7" x 15.7"
Max pallet load: 1100 LBS
Spindle speed: 14,000 RPM
Spindle motor: 30 HP
Spindle taper: 40 CT
Tool changer: 90
Dimensions: 180" x 75" x 118" (standard size)
Weight: 19,000 LBS
