HEM High Speed Horizontal Band Saw Machine Model: WF190M-DC

Description

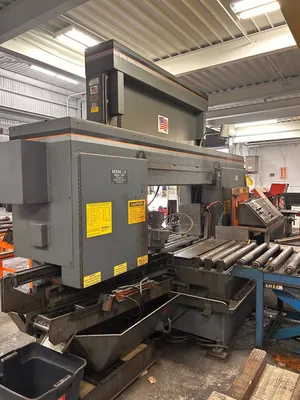

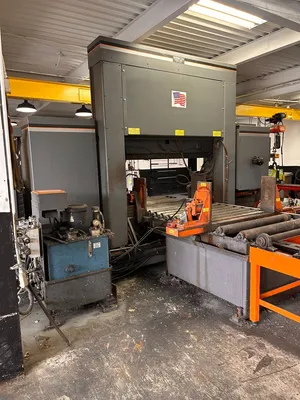

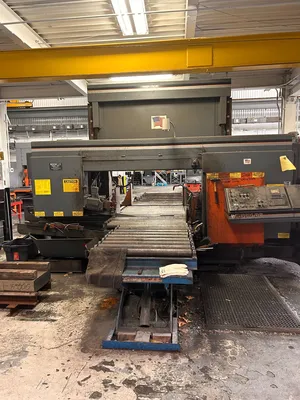

HEM High Speed Horizontal Band Saw Machine
Model: WF190M-DC
Serial Number: 742400
Specifications:
Dual Colum / High Speed / Heavy Duty Production Band
Saw
Saw Capacity: 25" Round, 40" Flat (Designed to cut 37"
wide flange beams)
Arm Tilt: 9.2 degree permanent
Blade Size: 2" x 286" x .063 THK
Brush: Powered brush assembly
Brush Size: .5" x 4"
cutting block partNo. A-11960-297
chip elevator chain indexer partNo. B-9638-16

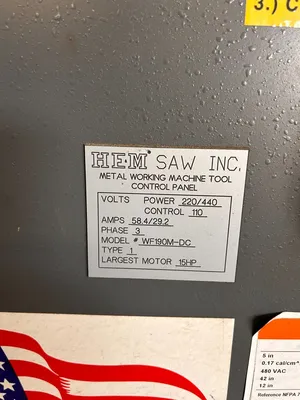

Electricals:
15 HP Drive Motor
220/440V AC
3 Phase
1/2 HP Coolant Pump

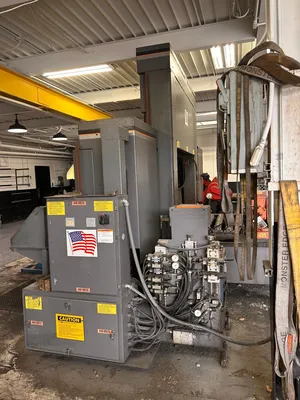

Hydraulics: 5 HP Hydraulic System
Vising: Full Stroking Vising
Blade Tension: Powered Blade Tension
Guide Arm: Powered moveable Guide Arm
Drive Mechanism:
Totally enclosed, running in oil, gear reducer with
variable speed drive of 70-500 SFPM. Remote speed
change with tachometer readout on control console.

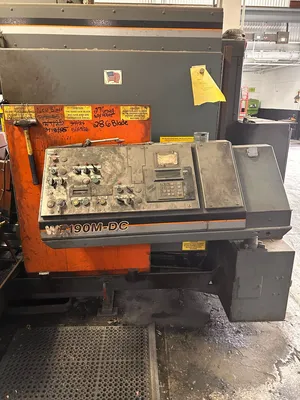

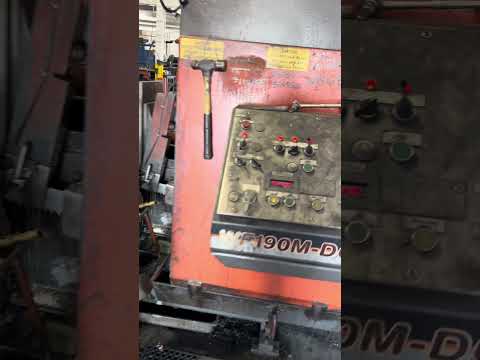

Control Console:
Swing away control remotely controls saw operations
including arm (raise, stop, cut and cutting pressure), blade
speed, guide arm and coolant system. All modular
